CARGO-SAFE™ Ultrasonic Hatch Cover Tester

WHAT IS CARGO-SAFE™?

CARGO-SAFE™ The choice of marine surveyors across the globe

Where ever there is a risk of water ingress, our CARGO-SAFE™ product can help you.

Often called UT or UT testing, the process consists of placing the transmitter on one side of whatever you are testing, and the receiver on the opposite end of what you are testing. The receiver is tuned to the transmitter frequency. The ultrasound can only travel through an air hole, so you immediately know if you have a problem. Ultrasound is not audible, so the receiver converts the ultrasound to an audible sound.

The sound is played through headphones or a small internal speaker. If you need to know the side of the hole, we also have the products to display the intensity in decibels. A Decibel is the universal unit for sound measurement. The bigger the measurement of sound, the bigger the air hole you have.

Our CARGO-SAFE™ is the most powerful ultrasonic hatch tester available on the market with a 157 dB transmitter suitable for any size ship.

Class Instrumentation Limited guarantees the CARGO-SAFE™ to be free from defects in both materials and workmanship for a period of three years from the date of dispatch for the receiver and transmitter units. The accessories also have a 6-month warranty. Our consumers have access to free technical support via email or telephone. For the entirety of the product life. It is also durable and stormproof and has environmental protection to IP66.

For smaller-scale investigations, like water-tight and weather-tight doors, we suggest our DOOR-SAFE™.

If you have a smaller budget, and a smaller scale investigation is needed, we recommend our CABIN-SAFE™ system.

Get A Quote
Download A Brochure
How the CARGO-SAFE™ Ultrasonic Hatch Cover Tester works

The CARGO-SAFE™ works in a very simple way. After the hatch covers are closed, the transmitter generating an ultrasonic signal is placed in the cargo hold, which then emits ultrasonic waves(the cargo hold can be empty or loaded with cargo).

The surveyor or operator then uses the CARGO-SAFE™ ultrasonic receiver to ‘listen’ from outside of the hold and detect any ultrasonic sounds that pass through any holes in the hatch cover with pinpoint accuracy. The size of the leak can be established by the strength of the signal detected.

The CARGO-SAFE™ hatch cover leak detection system has three levels of emitters: upper, lower and vertical. This means that ALL of the ultrasound is directed to the hatch covers, optimising its effectiveness.

The diagram shows the dispersion pattern of the ultrasonic sound emanating from the CARGO-SAFE™ transmitter.

The CARGO-SAFE™ has a high sound pressure level, so it is ample enough to fill even the largest of holds, to enable reliable and accurate readings.

  1. The CARGO-SAFE™ transmitter is placed in the cargo hold.
  1. On the deck, with all the hatches closed, the microphone and headphones are plugged into the receiver.
  1. The surveyor begins to inspect the hatch, holding the microphone against the hatch seals. Any gaps that either air or water could pass through will also allow the ultrasonic signal to pass through – and be detected.
    The display on the receiver shows the decibel level of any ultrasound leaking through the hatch seals. The signal can also be heard through the headphones.
  1. The flexible microphone and the extension arm allow the position of any potential leaks to be identified with pinpoint accuracy. The size of the problem is established by the strength of the signal detected.

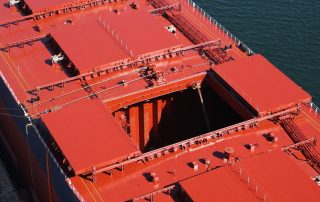

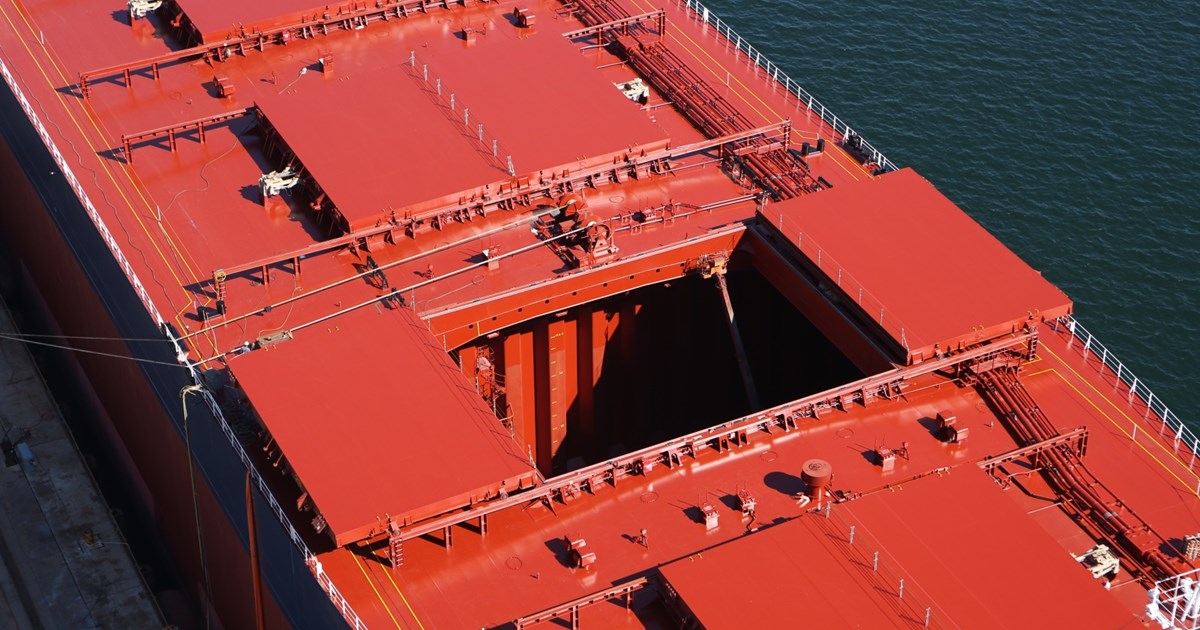

The main cause of damage to cargo is the ingress of water through leaking hatch covers. It is in the best interests of ship owners, managers and insurers to guarantee the ships cargo holds are watertight. If water does leak through hatch covers, it often results in large claims against insurance companies and P&I clubs.

CARGO-SAFE™ is an ABS Type Approved hatch cover tester. The CARGO-SAFE™ UT tester provides a quick and simple method of establishing weather-resistant tightness of hatch covers, bow, stern and side doors.

Unlike hose testing, the CARGO-SAFE™ has no negative side effects on the port or harbour environment and can be performed in sub-zero temperatures.

THE COMPLETE CARGO-SAFE™ HATCH COVER TESTING KIT INCLUDES:
  • Ultrasonic Transmitter unit
  • Receiver unit
  • Protective IP66 storm-proof leather cases with neck and waist straps for hands-free operation

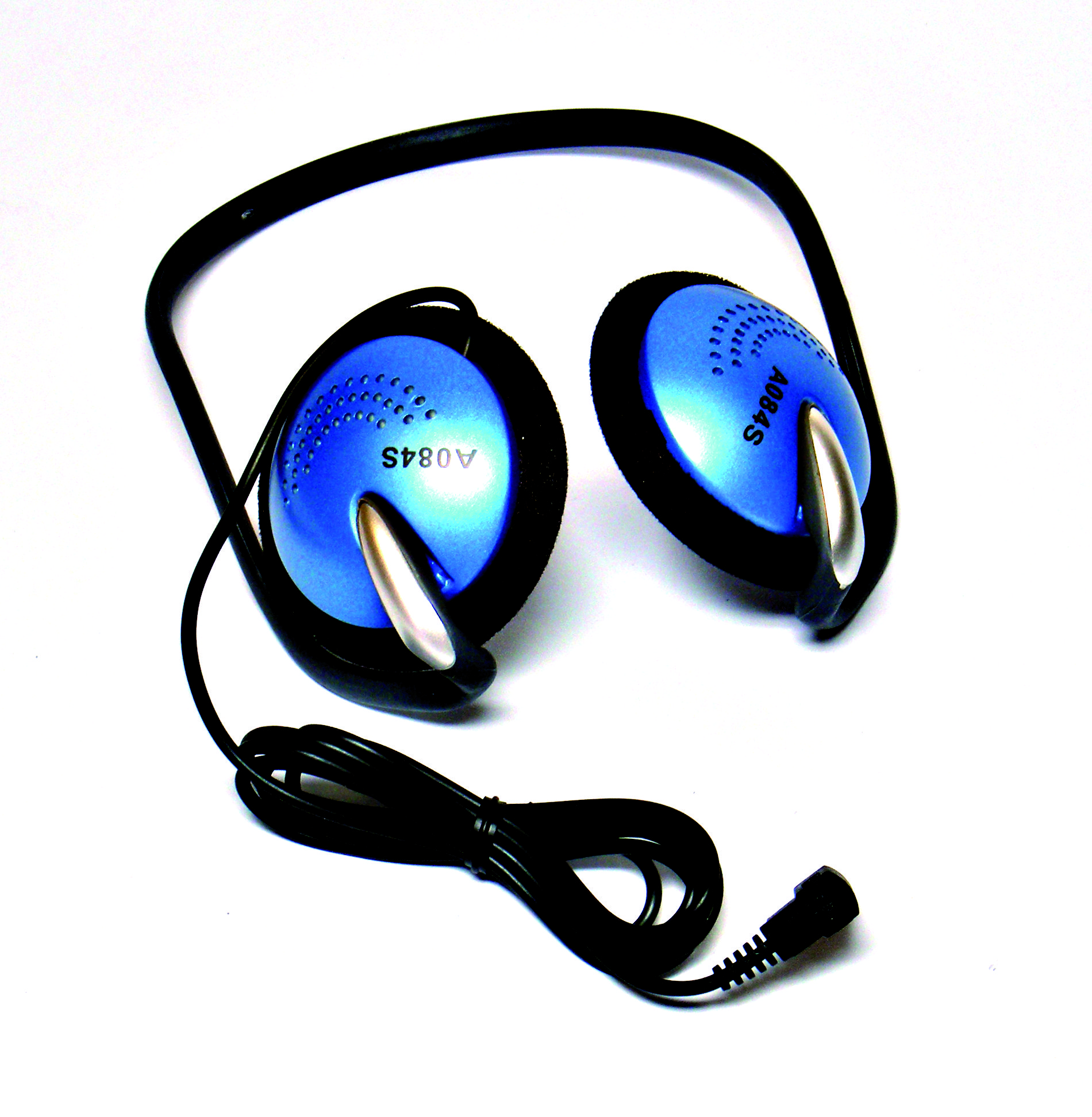

  • Hard hat compatible headphones
  • 2 Flexible inspection microphones (1 spare)
  • Telescopic microphone extension, up to 1.15m (45″)
  • Full operating instructions
  • Emergency microphone lead
  • Emitter, microphone and extension arm tester
  • Batteries and global charger (with 12V car adaptor)
  • 12-24V auxiliary power input lead
  • 450 x 320 x 100mm (17.7″ x 12.6″ x 3.9″) foam-lined black polymer carry case

CARGO-SAFE™ can be used to test the tightness and water integrity of:

  • Cargo hatch covers
  • Bow and stern doors
  • Access hatch seals
  • Watertight doors
  • Weathertight doors
  • It is compliant with port and harbour environment regulations and management plans as it does not pollute the marine environment
  • It can locate holes and tears in hatch seals with pinpoint accuracy
  • It causes no damage to cargo
  • It can be conducted in sub-zero temperatures
  • it can be used with the cargo in place
  • It does not interfere with other crew activities
  • It is simple to use
  • There is no training required to use – full instructions are given
  • Can be carried as hand luggage on an aircraft
  • The LCD screen allows you to read it in any lighting condition.
  • Switchable between dB (decibels) and percentage of OHV (Open Hatch Value).

The CARGO-SAFE™ is sold with a device that can be used to check the emitters, the inspection microphones, the extension arm and the microphone emergency lead (The EMEA Tester). It is recommended that this is complete between each survey to ensure accurate results.

The CARGO-SAFE™ hatch leak detector is calibrated at the factory and we predict it will stay calibrated for 5 years.

The constant output circuitry guarantees that the ultrasonic output of the transmitter is constant throughout the entire battery life. You can see this by the green flashing LED’s.

Each CARGO-SAFE™ unit is sold with a certificate of calibration and conformity, with full warranty and all details of serial numbers. This is evident in each units calibration and ABS type approval compliance. The CARGO-SAFE™ comes with a certificate of origin proving it is manufactured in the United Kingdom.

The CARGO-SAFE™ hatch cover tester complies with the IACS UR Z.17 directive.

CARGO-SAFE™ is a lightweight ultrasonic system for testing the water tightness of cargo hatch covers. The complete system is contained in one carry case for convenient transportation.

  • Shipping Weight: 4kg (8.8lb)
  • Operational Weight: 2.4kg (5.3lb)
Transmitter –
  • Weight – 475g (1.05lb)
  • Dimensions – 190 x 100 x 60 mm (max) (7.5” x 3.9” x 2.4”)
  • Output – 157 dB @ 40 khZ
  • Radio control standby to save battery life when not in use
  • Power supply – 6 x AA rechargeable or alkaline batteries with 4.5 hours of operation
  • Weather-resistant leather case to IP66, designed to protect if dropped.
  • Neck strap for easy hands-free use
Receiver –
  • Weight – 350g (12.3oz)
  • Dimensions – 160 x 100 x 30mm (6.3” x 3.9” x 1.2”)
  • Power supply – 1 x 9v PP3 rechargeable or alkaline battery with 40 hours nominal usage
  • Switchable between dB and percentage of Open Hatch Value (OHV)
  • Can be used with headphones, or an internal loudspeaker can be used instead
  • Can be used with a microphone, or internal microphone in the event of mic loss
  • Weather-resistant leather case – IP66, designed to protect if dropped
  • MAX HOLD capability to record maximum readings
  • Backlight button with ON/OFF or automatic OFF after 30 seconds for battery saving when not in use
  • Radio control button to switch from ON/Standby/OFF etc
  • Neck and waist straps for hands-free use
Microphone –
  • Weight – 110g (3.9oz)
  • Dimensions – 330 x 10mm diameter (13” x 0.4”)
  • Bright yellow to aid visibility
Headphones –
  • Weight – 50g (1.7oz)
  • 5mm stereo jack plug
  • Hard hat compatible
Emiiter, Microphone and Extension Arm Tester –
  • Weight – 17g (0.6oz)
  • Dimensions – 46 x 31 x 20mm (1.8″ x 1.2″ x 0.8″)
  • It is used to check the performance of the emitters, microphone, and
    the extension arm of the CARGO-SAFE™ before a survey
Extension Arm –
  • Weight – 150g (5.3oz
  • Dimensions – 390 x 40 x 30 mm (15.4” x 1.8” x 1.2”)
  • Dimensions when extended: 1150 x 40 x 30mm (45.3″ x 1.8″ x 1.2″)
  • Wrist strap for hands free use

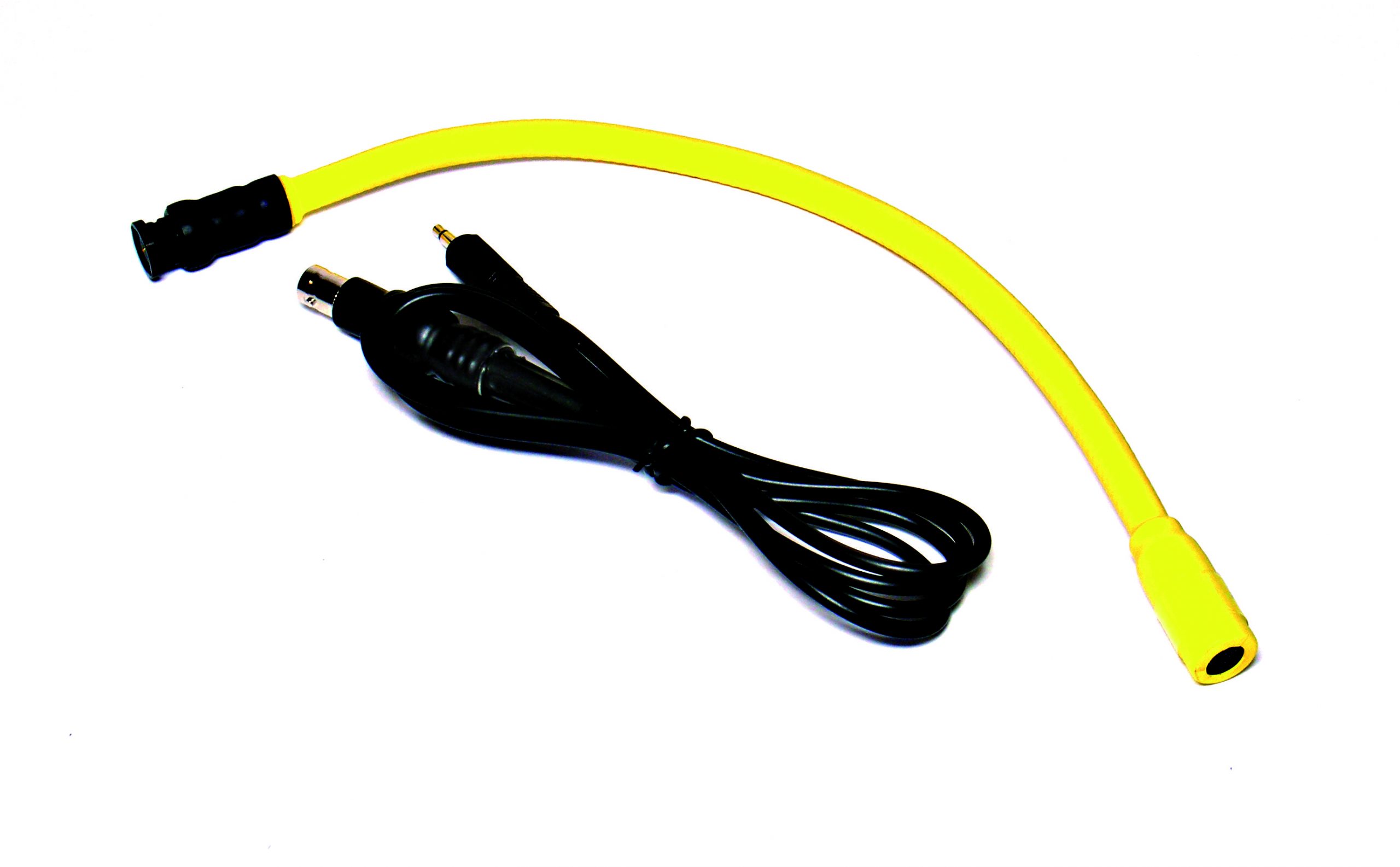

Spare Microphone and Emergency Lead –
  • To be used in the event of either microphone or extension arm loss
Battery Charger and Batteries
  • 12 x rechargeable AA batteries (for transmitter)
  • 2x PP3 9v batteries (for receiver)
  • Global battery charger with car adapter
Emergency Power Lead
  • For emergency power to the transmitter in the instance of a failed battery
  • Can accept an external power supply of 9 to 24 volts DC

American Bureau of Shipping (ABS) Manufacturing Assessment

CARGO-SAFE™ ABS Product Type Approval
Download A Brochure
ISO 9001:2015

NCAGE Number U0B22

NATO Number 6635-99-958-4633

IIMS Corporate Membership Number C508

International Customer Base and Exceptional Service.

Accreditations and Affiliations

ABS Type Approved Equipment

Get a Quick Quote

    World Leading Designers and Manufacturers

    We are proud to be British based designers and manufacturers of world-leading ultrasonic water integrity testers, liquid level indicators and non – destructive test equipment.
